Hot Fuse Cutout Product

The S&C Fuse Cutout is a crucial component in modern electrical systems, providing reliable protection against overcurrent. Understanding its functionality begins with examining a cut-out fuse diagram, which illustrates the key parts involved, such as the solid blade cutout and the fuse element. An electric cutout serves to disconnect circuits safely during faults, and knowing what a fuse does is essential—essentially, it melts and breaks the circuit to prevent damage.

One important aspect of electrical safety is the electrical cut-out switch, which allows for manual disconnection during maintenance. The Hot Fuse Cutout Product exemplifies advanced technology, enabling operation even in live environments while maintaining safety.

But how does a fuse cutout work? It continuously monitors electrical flow, automatically disconnecting when it detects an overload. Various fuse cutout types cater to different applications, ensuring versatility across projects. Regular fuse cutout service is necessary to maintain their reliability, and ongoing fuse cutout projects demonstrate their importance in infrastructure upgrades. Recognition through the Fuse Cutout Award highlights innovations in this vital field, underscoring the commitment to safety and efficiency in electrical distribution.

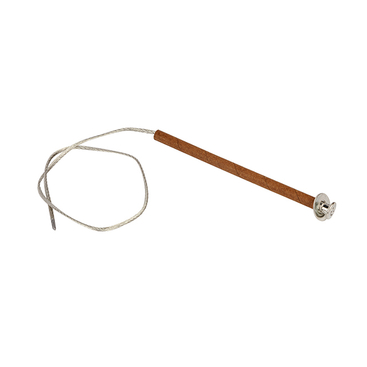

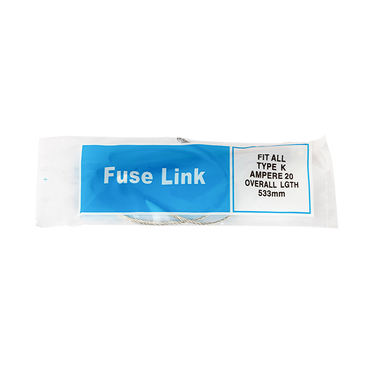

Type K Fuse Elements for Expulsion Fuse Cutout

Type Slow-fast Fuse Elements for Expulsion Fuse Cutout

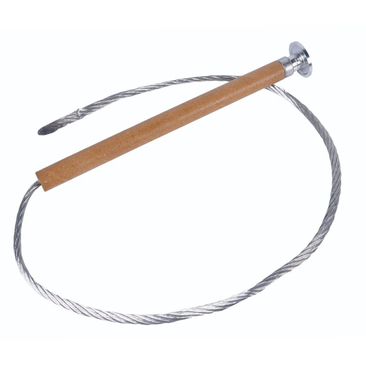

11kv Type H Fuse Links for Expulsion Fuse Cutout

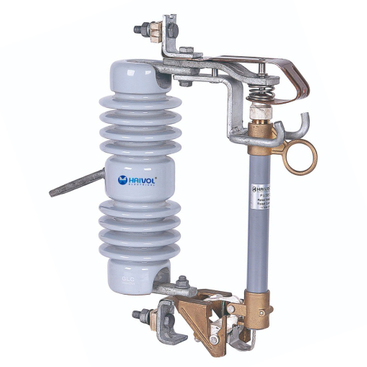

High Breaking Capacity 24kv Fuse Cutout

Inquiry Now

Fuse Cutout Projects

Haivo Fuse cutout are widely used in 11-38kV distribution lines and termination, especially in rural power grids, due to their low price and easy installation.
To date, HAIVO fuse cutout has been successfully used and operated for many years in nearly 50 countries and territories in South America, Latin America, Asia, Africa, and the Middle East. HAIVO′s high standards have received due recognition from the local power customers.

Fuse Cutout Types

Fuse cutout has 4 categories according to design,include Standard fuse cutout,Loadbreak fuse cutout,Disconnect break fuse cutout，fuse cutout-Arrester combinations.
Standard fuse cutout Provide protection to the line of distribution system.It
can also be used as a sectionalizing device.Using a portable loadbreak tool,it can function much like an overhead line disconnect switch.
LOADBREAK fuse cutout with arc chute provides loadbreak capability. Also expands the flexibility of the protective devices.
FUSE CUTOUT-ARRESTER Combination units install easily and faster,more economically,take up less space in storage,transit and service.Each combined unit takes up a minimum of space on the crossarm and has a favorable weight distribution for minimal off- center loading.
DISCONNECT BLADE cutout adopts design feature of fuse cutout,using cooper disconnect blade to replace fuse tube, be used as a sectionalizing device(disconnect switch) on 11kv to 36kv distribution system.
Also include 2 categories according to insulation material,it include polymer fuse cutout and porcelain fuse cutout.

CONTACT US

How Does A Fuse Cutout Work

Fuse cutout is the most commonly used short-circuit protection switch for 11-38kV distribution line branch lines and distribution transformers. It is widely used in 11-38kV distribution lines and the primary side of the distribution transformer is used for protection and equipment switching and switching operations.

The movable contacts at both ends of the fuse tube are fastened by the fuse (melt). After the upper movable contact is pushed into the protruding part of the "duckbill", the upper static contact made of phosphor copper sheet, etc., is against the upper movable contact. Head, so the fuse tube is firmly stuck in the "duckbill". When the short-circuit current is blown by the fuse, an arc is generated. The steel paper tube lining the fuse tube generates a large amount of gas under the action of the arc. The upper end of the fuse tube is sealed, and the gas is sprayed out to the lower end to extinguish the arc. Because the fuse is blown, the upper and lower movable contacts of the fuse tube lose the fastening force of the fuse. Under the action of the gravity of the fuse tube and the upper and lower static contact springs, the fuse tube quickly falls, causing the circuit to be disconnected. , Cut off the faulty section of the line or faulty equipment.

Inquiry Now

Fuse Cutout Service

We have professional after-sales personnel to communicate with you to help solve professional problems of some products.

Our Fuse Cutout Service is dedicated to maintaining the integrity and performance of your electrical systems. Whether you are working with an S&C Fuse Cutout, a solid blade cutout, or any other type of electric cutout, our expert technicians are equipped to handle all aspects of installation, maintenance, and repair.

Understanding what a fuse does is fundamental to our service. A fuse protects electrical circuits by melting under excessive current, and our service ensures that your fuse cutout operates efficiently. We provide comprehensive inspections using detailed cut-out fuse diagrams to assess the condition of your equipment and identify any potential issues.

The melt should be tightened during installation (make the melt subject to a pulling force of about 24.5N), otherwise it is easy to cause contact heat.

The fuse should be installed on a cross arm (frame) with a vertical distance of not less than 4m from the ground. If it is installed above the distribution transformer, it should maintain a horizontal distance of 0.5m or more from the outermost contour of the distribution transformer to prevent it from melting. The tube fell and caused other accidents.

The fuse installed on the cross arm (frame)

should be firm and reliable, and there should be no shaking or shaking.

The length of the fusion tube should be adjusted moderately. It is required that the duckbill tongue can buckle more than two-thirds of the length of the contact after the switch is turned on, so as to avoid the false action of self-falling during operation, and the fusion tube should not top the duckbill to prevent The fuse tube cannot fall down in time after the melt is blown.

Fuse Cutout Award

All fuse cutouts we manufacture and test according to the latest international standard IEC 60282-2:2008 & IEEE Std C37.41-2008 & IEEE Std C37.42-2009.All series from 15-36kV Fuse cutout have got type test certificates from STL member Laboratory KEMA Lab.80% of the parts of fuse cutout are produced by ourselves, which can effectively control the product quality. We have perfect & complete testing equipments, from spare parts to finished products, we implement strict inspection procedures to ensure 100% qualified rate. We also have a professional technical team, be able to design according to power users in different countries and regions and different technical requirements.
