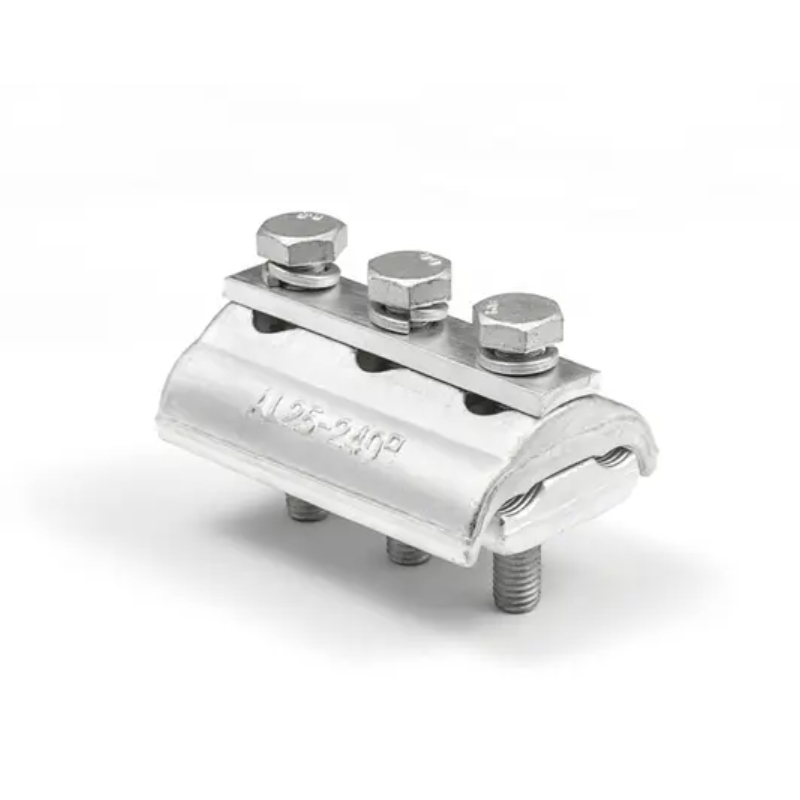

APG
Material:
High strength aluminum alloy by forging. Surface treatment: Bright.
Product property:
APG is used for connecting or branching AAC, AAAC or ACSR overhead conductors. Forging
creates a high strength clamp. Slotted holes allow adjustment for varying conductors on each
side. Its type test is in accordance with IEC61238-1.
| Model | Conductor Cross-section (mm2) | Bolts |
| APG-A1 | Al 16-70 | 1×M8×40 |
| APG-A2 | Al 16-150 | 1×M8×45 |
| APG-B1 | Al 16-35 | 2×M6×35 |
| APG-B2 | Al 16-70 | 2×M8×45 |
| APG-B3 | Al 16-150 | 2×M8×50 |
| APG-B4 | Al 25-185 | 2×M10×60 |
| APG-C1 | Al 16-70 | 3×M8×45 |
| APG-C2 | Al 16-150 | 3×M8×50 |
| APG-C3 | Al 25-240 | 3×M10×60 |
| APG-C4 | Al 35-300 | 3×M10×70 |
